Geewiz 2200W Portable UPS Power Station Kit – 2000Wh LiFePO4 Battery
Geewiz 2200W Portable UPS Power Station Kit – 2000Wh LiFePO4 Battery / Pure Sine Wave Output
Product Overview
The Geewiz 2200W Portable UPS Power Station Kit is a rechargeable energy storage solution designed for backup power, portable power applications, camping, off-grid use, and emergency power requirements. Featuring a 1997Wh LiFePO4 battery, pure sine wave AC output, and built-in UPS functionality, it is suitable for powering compatible household appliances, electronic devices, and tools.
The integrated battery management system (BMS), multiple charging options, and comprehensive output selection provide flexibility for a variety of power requirements.
Key Features
2200W Rated Output Power
1997Wh LiFePO4 Battery Capacity
Pure Sine Wave AC Output
Built-In UPS/Bypass Function
Approximate 2-Hour AC Charging Capability
Battery Management System (BMS)
Dual Cooling Fan Design
Multiple Output Ports
Solar Charging Compatible
Car Charging Compatible
LCD Display
2-Year Manufacturer Warranty
Battery Specifications
The power station utilizes LiFePO4 battery technology designed for portable and backup power applications.
Battery Features
Battery Capacity: 1997Wh (39Ah / 51.2V)
Battery Chemistry: LiFePO4
Cycle Life: Approximately 3500 Cycles
Built-In Battery Management System (BMS)
Low Battery Alert Function
Adaptive Battery Charging System
Power Output
Designed to provide power for compatible appliances and electronic devices within the rated output capacity.
AC Output Specifications
Rated Output Power: 2200W
Peak Output Power: Up to 4400W (UPS Mode)
Output Voltage: 220V–240V AC
Frequency: 50/60Hz Auto Switching
Pure Sine Wave Output
3 x South African AC Sockets
UPS Performance
Built-In UPS Function
Transfer Time: Approximately 10ms
Suitable for Compatible Backup Power Applications

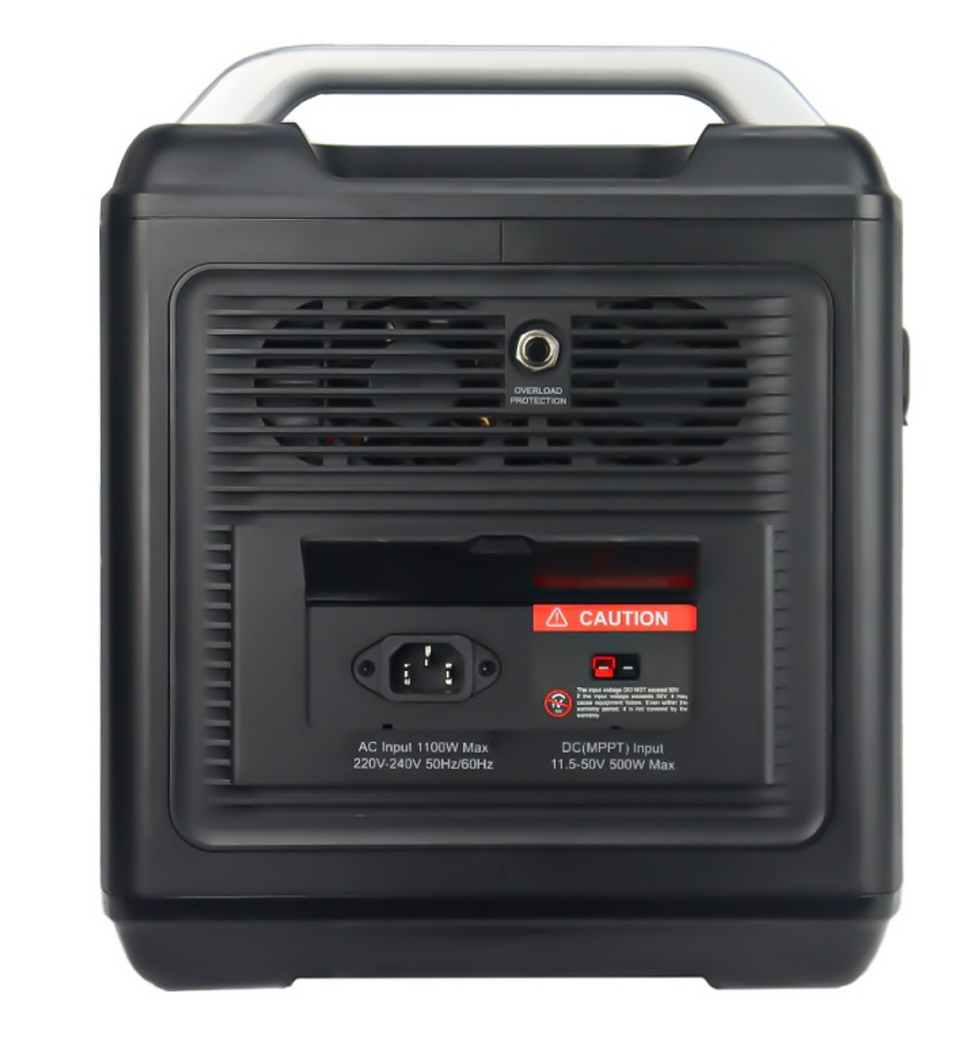

Charging Options
Multiple charging methods are available depending on user requirements and compatible charging equipment.
Charging Specifications
AC Charging Input: Up to 1100W
Approximate Charging Time: 2 Hours
Solar MPPT Input Voltage: 11.5V–50V
Maximum Solar Input Power: 500W
Maximum Solar Input Current: 20A
Car Charging Compatible
Output Ports
USB Outputs
2 x USB-A Outputs (5V / 2.4A)
2 x USB-A QC3.0 Outputs (18W Max)
2 x USB-C PD3.0 Outputs (100W Max)
DC Outputs
XT60 Output: 12V / 25A
2 x DC Outputs: 12V / 3A
Car Port Output: 12V / 10A
Cooling and Protection Features
Designed with integrated safety and monitoring systems to support operation according to manufacturer specifications.
Protection Features
Short Circuit Protection
Over-Current Protection
Over-Voltage Protection
Overcharge Protection
Over-Discharge Protection
Temperature Monitoring
Dual Cooling Fan System
Estimated Runtime Examples
Actual runtime will vary depending on appliance power consumption, startup loads, battery condition, environmental factors, and operating conditions.
Example Runtime Estimates
55" LED TV (140W): Up to 11.7 Hours
Desktop PC (300W): Up to 5.5 Hours
Double-Door Fridge (780W): Up to 2.1 Hours
Microwave (800W): Up to 2 Hours
Electric Drill (850W): Up to 1.9 Hours
Washing Machine (850W): Up to 1.9 Hours
Circular Saw (1200W): Up to 1.4 Hours
Espresso Machine (1500W): Up to 1.1 Hours
Air Fryer (1800W): Up to 0.9 Hours
Hair Dryer (1800W): Up to 0.9 Hours
Physical Specifications
Dimensions: 392 × 279 × 323mm
Weight: 22kg
Operating Temperature: -10°C to 40°C
Charging Temperature: 0°C to 40°C
Integrated LCD Display
Applications
Suitable for:
Backup Power Applications
Home Power Backup
Camping
Outdoor Activities
Off-Grid Power Systems
Portable Workstations
Emergency Power Requirements
Mobile Power Applications
What's Included
1 x Geewiz 2200W Portable UPS Power Station
AC Charging Cable
MC4 to Anderson Solar Charging Cable
User Documentation
Warranty and Installation
Manufacturer Warranty: 2 Years
Product should be operated according to manufacturer instructions
Actual runtime and charging performance may vary depending on connected load, battery condition, operating environment, and usage patterns
Solar charging performance will vary based on sunlight availability, panel configuration, weather conditions, and installation factors
Users should verify appliance compatibility before connection
Important Information
The adaptive charging feature may cause the battery charge level to fluctuate between approximately 90% and 100% during operation or charging
This behavior is part of the battery management system and is designed to support battery maintenance and normal operation
Always follow manufacturer operating, charging, and safety guidelines
