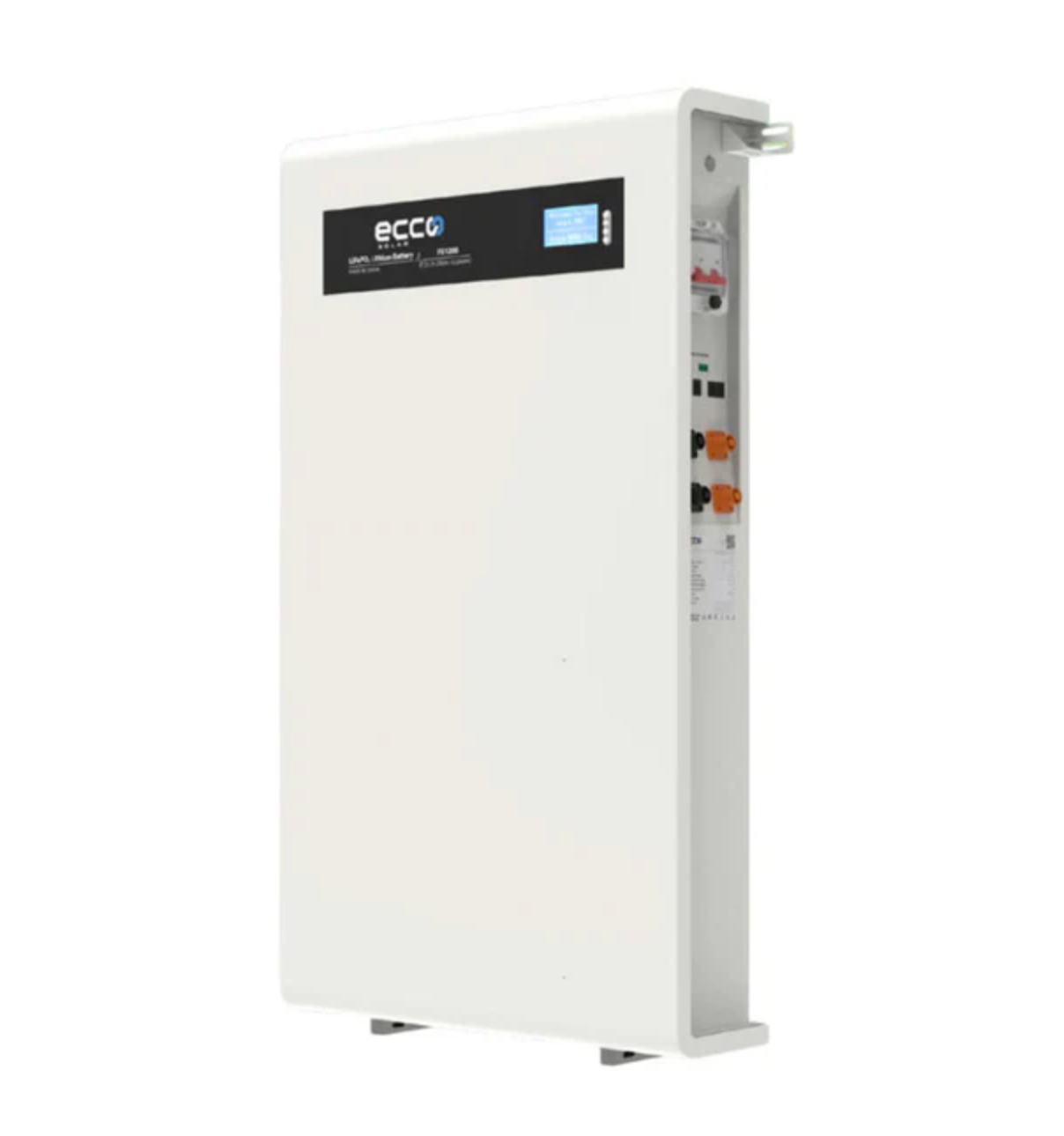

Ecco Solar F51200 10.24kWh Lithium Battery | 51.2V 200Ah LiFePO₄

The Ecco Solar F51200 is a 10.24kWh lithium battery designed for residential and commercial solar energy storage, backup power, and off-grid applications. Using Lithium Iron Phosphate (LiFePO₄) battery chemistry and an integrated Battery Management System (BMS), it provides reliable energy storage with built-in protection against overcharging, short circuits, and other operating conditions.

With a 51.2V 200Ah configuration, support for up to 180A charge and discharge current, and a cycle life of up to 6,000 cycles at 80% depth of discharge, the F51200 is designed for dependable long-term energy storage.

Key Features

• 10.24kWh Nominal Energy Capacity

• 51.2V 200Ah Battery Configuration

• Lithium Iron Phosphate (LiFePO₄) Chemistry

• Built-In Battery Management System (BMS)

• Up to 180A Maximum Charge Current

• Up to 180A Maximum Discharge Current

• 200A Peak Output Current for 10 Seconds

• Up to 6,000 Cycles at 0.5C and 80% DOD

• Up to 16 Batteries Can Be Connected in Parallel

• RS485 and CAN Communication

• Floor-Standing Installation

• IP54 Ingress Protection

• Compatible with Major Inverter Brands

Technical Specifications

• Model: F51200

• Brand: Ecco Solar

• Nominal Voltage: 51.2V

• Nominal Capacity: 200Ah

• Nominal Energy: 10.24kWh

• Battery Chemistry: LiFePO₄

• Maximum Charge Current: 180A

• Maximum Discharge Current: 180A

• Peak Output Current: 200A @ 10 Seconds

• Cycle Life: 6,000 Cycles @ 0.5C, 80% DOD

• Design Life: Up to 20 Years

• Communication: RS485 / CAN

• Maximum Parallel Configuration: 16 Units

• Installation: Floor Standing

• Ingress Protection: IP54

Mechanical Specifications

• Dimensions: 591 × 157.5 × 1,025 mm

• Weight: Approximately 95kg

Safety & Certifications

• Integrated Battery Management System

• Overcharge Protection

• Short-Circuit Protection

• LiFePO₄ Battery Chemistry

• UN38.3

• CE

Applications

The Ecco Solar F51200 is suitable for:

• Residential Solar Systems

• Commercial Solar Installations

• Off-Grid Solar Systems

• Battery Backup Systems

• Load-Shedding Backup

• Solar Energy Storage

• Hybrid Inverter Systems

What's Included

• 1 × Ecco Solar F51200 10.24kWh Lithium Battery

• Floor-Standing Battery Unit

• Battery Communication Connections

Warranty

5-Year Warranty

The Ecco Solar F51200 provides a high-capacity, scalable energy storage solution for customers requiring reliable lithium battery storage for solar and backup power systems.
